HSD ES325 Spindle Repair & ISO30 Rebuild Services
Overview

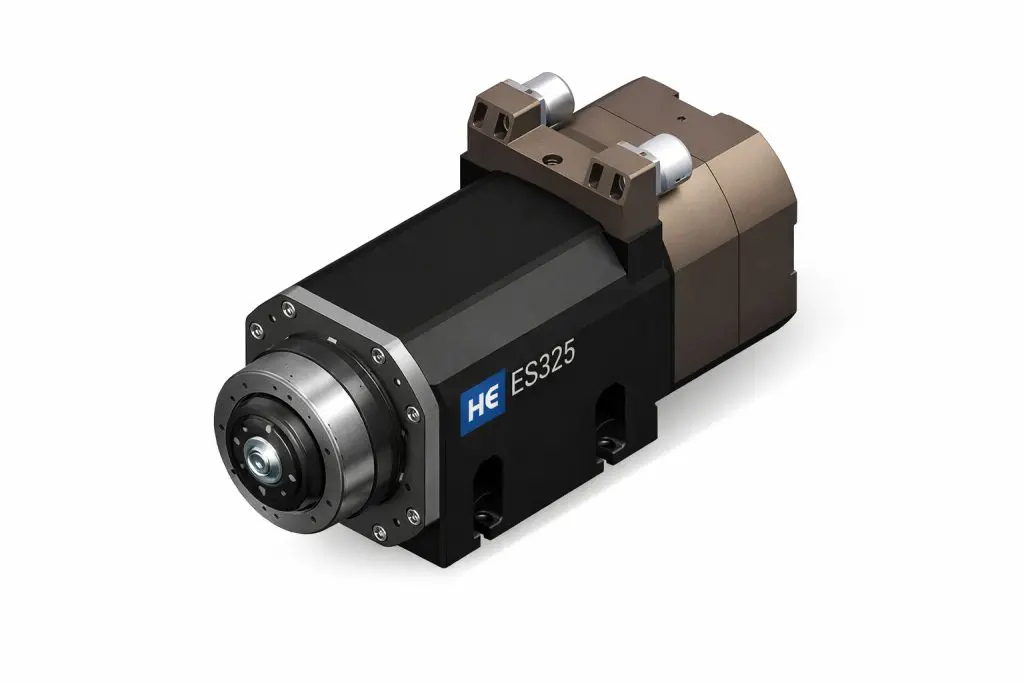

The HSD ES325 is a compact ISO30 electrospindle designed for CNC routing and light machining applications. It shares a similar frame size to the ES330 but operates at lower torque and power levels, making it common in:
- Woodworking routers
- Plastic machining
- Entry-level machining centers
- Light-duty production environments
Despite its smaller power rating, it still operates at 24,000 rpm, meaning precision balance and bearing integrity remain critical HSD_Cat_Composite_mar24_Web_ENG….
Technical Specifications (Official Model Data)
From the HSD catalog (pages 22–23) HSD_Cat_Composite_mar24_Web_ENG…:
- Body Diameter: 119.5 x 102.5 mm
- Max Speed: 24,000 rpm
- Motor Technology: Asynchronous
- Torque S1/S6 (40%): 1.59 / 1.79 Nm
- Power S1/S6 (40%): 2 / 2.25 kW
- Taper: ISO 30
- Cooling: Electric fan
How ES325 Differs from ES330
While visually similar to the ES330:
- Lower torque output
- Lower power capacity
- More sensitive to overloading
- Frequently installed in lighter-frame CNC routers
Because of its lower power margin, operators often unknowingly overload ES325 units in hardwood or aluminum applications.
🔍 Common Failure Modes – HSD ES325
1️⃣ Bearing Wear from Overloading
With rated S6 power of only 2.25 kW HSD_Cat_Composite_mar24_Web_ENG…, aggressive feeds can exceed design limits.
Symptoms
- early vibration
- high-pitched bearing noise
- loss of surface finish quality
2️⃣ ISO30 Taper Fretting
ISO30 relies on clean, consistent taper contact.
Common issues:
- pull stud wear
- taper scoring
- reduced clamp force
3️⃣ Fan Cooling Limitations
Electric fan cooling can be compromised by:
- dust accumulation
- restricted airflow
- degraded fan motor
Heat buildup changes bearing preload and accelerates failure.
4️⃣ High-RPM Imbalance Sensitivity
Even though torque is low, 24,000 rpm operation means:
- tooling balance is critical
- small imbalance produces large vibration
- contamination quickly damages bearings
🧰 ES325 Rebuild Process
- Complete teardown and cleaning
- Bearing set replacement (24k-rated matched set)
- ISO30 taper inspection and correction
- Tool clamp retention force check
- Fan and airflow inspection
- Rotor balance verification
- Final run-in with vibration and temperature monitoring
💰 Repair vs Replace – ES325
Because ES325 is lower power, replacement cost is less than high-end ES models — but downtime still impacts production.
In most failures:
- Bearings are primary wear component
- Clamp system may need servicing
- Motor core remains salvageable
Rebuilding restores accuracy and RPM performance without full replacement.
✅ Preventative Maintenance – ES325
- Keep taper and toolholders clean
- Replace worn pull studs early
- Clean fan intake regularly
- Avoid pushing aluminum cuts beyond rated power
- Monitor vibration trends monthly
