HSD ES351 Spindle Repair & Rebuild Services
Overview

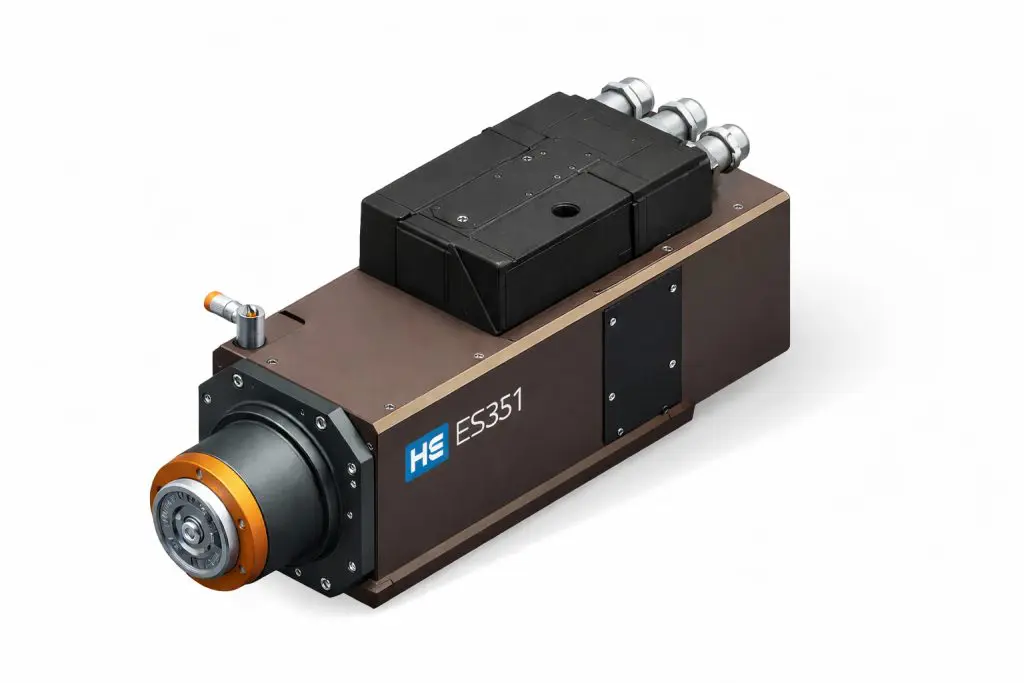

The HSD ES351 is a compact, high-speed electrospindle designed for routing and machining applications that require higher RPM capability in a smaller frame size. It is commonly found in:
- CNC routers
- Plastic machining centers
- Wood processing equipment
- High-speed trimming applications
Compared to the ES325 and ES330, the ES351 typically emphasizes higher RPM performance within a compact footprint.
Technical Specifications (Official Model Data)
From the HSD catalog HSD_Cat_Composite_mar24_Web_ENG…:
- Body Diameter: 119.5 x 102.5 mm
- Max Speed: 30,000 rpm
- Motor Technology: Asynchronous
- Torque S1/S6 (40%): 1.59 / 1.79 Nm
- Power S1/S6 (40%): 2 / 2.25 kW
- Taper: ISO 30
- Cooling: Electric fan
What Makes ES351 Different
The primary difference between ES351 and ES325 is speed capability.
- ES351 runs up to 30,000 rpm HSD_Cat_Composite_mar24_Web_ENG…
- Higher sensitivity to tooling balance
- Greater thermal management importance
- Same ISO30 interface
Because of the 30k rpm rating, ES351 units are significantly more sensitive to:
- imbalance
- contamination
- improper preload
🔍 Common Failure Modes – HSD ES351
1️⃣ High-Speed Bearing Wear (30k RPM)
At 30,000 rpm, even small imbalance becomes amplified.
Symptoms
- high-frequency vibration
- rapid temperature rise
- shortened bearing life
2️⃣ ISO30 Taper Interface Wear
ISO30 systems depend heavily on clean contact surfaces.
Common issues:
- fretting
- pull stud wear
- retention force reduction
High-speed operation accelerates taper damage if tooling is not maintained.
3️⃣ Fan Cooling Limitations at High Speed
The ES351 is fan cooled HSD_Cat_Composite_mar24_Web_ENG….
At 30k rpm:
- airflow must remain unobstructed
- dust buildup quickly raises temperature
- heat affects preload stability
4️⃣ Overloading in Hardwood or Aluminum
Despite high RPM capability, ES351 remains a 2.25 kW S6 unit HSD_Cat_Composite_mar24_Web_ENG….
Aggressive cutting loads shorten bearing life dramatically.
🧰 ES351 Rebuild Process
- Full teardown and cleaning
- Replacement of 30k-rated matched bearing set
- Precision preload setup (critical at 30k rpm)
- ISO30 taper inspection and correction
- Tool clamp retention force test
- Fan system inspection and airflow validation
- Rotor balance verification
- Final run-in at rated speed with vibration monitoring
High-speed balancing is especially important for ES351 units.
💰 Repair vs Replace – ES351
Because ES351 operates at higher RPM but modest power levels, most failures are bearing-related rather than catastrophic motor failures.
In many cases:
- Bearings are primary wear component
- Taper may need correction
- Motor windings remain intact
Rebuilding restores high-speed precision without replacement cost.
✅ Preventative Maintenance – ES351
- Balance tooling carefully before high-RPM operation
- Clean taper and toolholders frequently
- Inspect pull studs regularly
- Maintain unobstructed airflow
- Monitor vibration monthly
