Overview

Why GMN Spindle Repair Requires Specific Expertise

GMN spindles are not generic precision spindles. They are built around a proprietary bearing system with defined precision grades, specific grease codes printed on the bearing box, and preload values that vary by series and application. A repair that ignores any of these parameters will reproduce the original failure.

GMN manufactures its own bearings to specifications that go beyond standard ABEC ratings. When a GMN spindle comes in for repair, the bearing selection isn’t a matter of finding a close substitute — it requires matching the original precision grade, contact angle, cage type, lubrication designation, and preload class. Each of these is encoded in the bearing part number using GMN’s designation system.

The grease is not interchangeable. GMN uses T-coded grease identifiers printed on every bearing box — T274 means Lubcon Turmogrease L252; T005 means Klüber Isoflex NBU 15. Substituting a different grease, or using the correct grease at the wrong fill percentage, changes thermal behavior and bearing life under load. The standard fill for KH series bearings is 25%; for S and SM series it is 30%. These are not suggestions.

Preload is set at assembly and directly affects both rigidity and speed capability. A bearing set assembled with the wrong preload will either run hot and fail early (too heavy) or deliver poor surface finish and accuracy (too light). For the KH 61907 series alone, light preload is 25N for the C contact angle and 40N for the E — a difference that has measurable consequences in service.

---

GMN Bearing Precision

Understanding GMN Precision Grades

GMN uses a five-tier precision system that extends beyond the standard ABEC scale. Selecting the correct grade for a rebuild depends on the spindle’s original specification and operating speed range.

GMN Code	Standard Equivalent	Description	Typical Application
P4+	Similar to ABEC 7 — Tighter	Corresponds to P4S per DIN 628-6. Tighter than standard P4. GMN’s baseline precision for angular contact spindle bearings.	Standard high-speed grinding and milling spindles
HG	GMN Proprietary — Above P4+	GMN high precision — above P4+, not a standard DIN/ABEC class. Tighter runout and geometry tolerances than P4+.	High-accuracy grinding; finish-critical milling
UP	GMN Proprietary — Above HG	GMN ultra precision — above HG, below P2. Highest non-ABEC GMN grade before ISO/DIN P2.	Ultra-precision grinding; form and roundness critical
P2 / A9	ABEC 9 / ISO P2	European tolerance class P2, similar to ABEC 9. Tightest standard grade for the most demanding accuracy applications.	Precision bore grinding; aerospace tolerances

---

Bearing Selection

Contact Angles, Series, and What They Mean for Repair

GMN angular contact bearings use two primary contact angles — C (15°) and E (25°). These are not interchangeable. The selection determines the trade-off between speed capability and axial rigidity, and must match the original spindle specification.

The C contact angle (15°) is optimized for higher rotational speed. It produces lower axial rigidity but allows the bearing to run faster with less heat generation. The KH 61907 C TA is rated to 43,750 RPM with grease lubrication and 58,750 RPM with oil-air lubrication — with a light preload of 25N.

The E contact angle (25°) trades some speed for higher axial rigidity and load capacity. The same KH 61907 in E configuration is rated to 40,000 RPM grease / 53,750 RPM oil, with a higher light preload of 40N and significantly greater axial rigidity across all preload classes. The E angle is appropriate where axial cutting forces are higher or where stiffness takes priority over peak speed.

Series	Name	Characteristic
S	Standard	Single relief on outer ring. Baseline angular contact series for precision spindle applications.
SM	High Speed Large Ball	Larger balls than S series — higher speed capability than S while maintaining similar performance profile.
KH	Small Ball High Speed	Small ball design optimized for maximum speed. Available with 2RZ seals on both sides for contamination protection.
BNT	Separable / S-type	Separable bearing with S series performance. Inner and outer rings can be separated for assembly.
BHT	Separable / SM-type	Separable bearing with SM series performance. Preferred where housing design requires ring-by-ring assembly.

---

Hybrid Si₃N₄ Bearings

Ceramic Ball Hybrid Bearings — The HY Designation

GMN offers a hybrid bearing option using Silicon Nitride (Si₃N₄) ceramic balls with standard steel rings. Identified by the HY prefix — e.g. HY KH 61907 C TA. They represent a meaningful upgrade path available during spindle rebuild.

Silicon nitride ceramic balls are roughly 60% of the mass of steel balls, which reduces centrifugal loading on the outer raceway at high speed. This lower centrifugal force allows the bearing to run with less heat generation, lower friction, and extended grease life at the same operating speed compared to an all-steel equivalent.

The trade-off is load capacity. The static radial load rating for Si₃N₄ balls in the KH 61907 is 2,320N, compared to 3,300N for the steel ball version. For grinding and milling applications running at the upper end of the speed range, this is typically not a constraint — but it must be confirmed against the spindle’s cutting load profile before specifying hybrid bearings in a rebuild.

---

Lubrication Specification

GMN Grease Codes — Why the T-Code Matters

Every GMN bearing box carries a T-code grease identifier that specifies the exact grease formulation used at manufacture — and must be matched or deliberately upgraded during rebuild. Using a different grease or the wrong fill percentage is one of the most common sources of premature bearing failure after spindle repair.

GMN’s grease coding system assigns a T-number to each approved grease. T274 on the bearing label means Lubcon Turmogrease L252. T005 is Klüber Isoflex NBU 15 — one of the most commonly specified greases for high-speed spindle bearings. T226 is Klüber Asonic GHY 72, used in higher-temperature or higher-speed applications where NBU 15 would degrade too quickly.

Fill percentage is equally important. GMN specifies standard fill percentages by series: KH series bearings are filled to 25%, while S, SM, and Radial series are filled to 30%. Over-greasing a high-speed bearing causes churning, heat, and premature failure. Under-greasing shortens life. Neither is obvious from the outside until the bearing fails.

T-Code	Grease Name	Notes
T005	Klüber Isoflex NBU 15	Most common high-speed spindle grease. Low noise, excellent speed capability.
T007	Klüber Isoflex LDS 18 Spec. A	High-speed application with specific additive package.
T008	Klüber Isoflex LDS 18	Standard version of LDS 18 formulation.
T058	Krytox 240 AB	PFPE/PTFE grease — used in chemical resistance or clean-room applications.
T092	Krytox 283 AZ	High-temperature PFPE grease for elevated operating temperatures.
T126	Klüber Isoflex Topas NB 52	Wide-temperature range; often used in food-grade or clean environments.
T176	Klüber Asonic GLY 32	Very high speed, very low noise. Used in ultra-precision applications.
T226	Klüber Asonic GHY 72	High speed + higher temperature capability over GLY 32.
T254	Klüber Asonic HQ 72-102	Top-tier high-speed, high-temperature Klüber formulation.
T274	Lubcon Turmogrease L252	Common in GMN KH series. Balanced speed and temperature performance.
T295	Lubcon Turmotemp M 802	High-temperature application grease for elevated sustained temperatures.
T300	Lubcon Turmotemp LS 1002	Highest temperature range in standard Lubcon series.

---

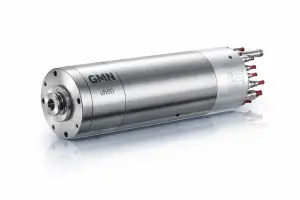

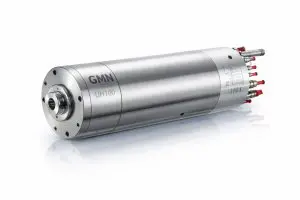

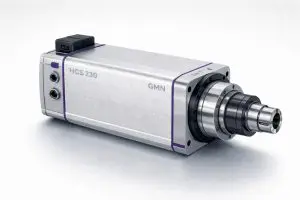

Spindle Series

GMN Spindle Series We Repair

Atlanta Precision Spindles repairs the full range of GMN spindle types across grinding and milling applications. Each series presents distinct repair considerations related to lubrication method, bearing arrangement, and preload specification.

---

Diagnostic Reference

Common GMN Spindle Failure Symptoms

GMN spindles typically communicate degradation through process symptoms before any mechanical noise appears. By the time a GMN spindle is audibly rough, secondary damage is usually already present.

---

Repair Process

What a GMN Spindle Rebuild Involves

A proper GMN spindle rebuild is not a bearing swap. It is a full disassembly, inspection, precision component replacement, and verified reassembly process where every parameter that affects spindle performance is confirmed against specification before the spindle leaves the shop.

1. Intake & Bearing Identification — Full disassembly. Bearing part numbers are recorded and decoded against the GMN designation system — confirming series, contact angle, precision grade, cage type, and original grease code. This establishes the specification baseline for the rebuild.
2. Inspection & Damage Assessment — Shaft, housing bore, taper, and all mating surfaces are inspected for wear, fretting, scoring, and dimensional deviation. Encoder condition checked on milling spindles. Secondary damage from bearing failure is catalogued before any parts are ordered.
3. Bearing Selection & Sourcing — Replacement bearings are sourced to match original precision grade (P4+, HG, UP, or P2), contact angle (C or E), cage specification (TA or TXM), and series (S, SM, KH, BNT, BHT). Hybrid Si₃N₄ upgrade discussed with customer if application warrants it.
4. Grease Selection & Fill — Grease is specified by T-code from the original bearing box or spindle documentation. Fill percentage is set per GMN standard: 25% for KH series, 30% for S and SM series. Temperature-rated greases specified where operating conditions require it.
5. Assembly & Preload Setting — Bearings assembled in matched sets with correct orientation (back-to-back, face-to-face, or tandem per original). Preload set to match the original class using the actual N values from the bearing data sheet for the specific part number — not generic estimates.
6. Dynamic Balancing & Run-In — Spindle is dynamically balanced after assembly. Graduated run-in sequence brings the spindle up to operating speed in stages, allowing grease distribution and thermal stabilization before vibration and runout measurements are taken.
7. Verification & Return — Vibration levels, runout, and thermal profile are measured and documented. Spindle is returned with a rebuild report confirming the bearing specification used, grease code, preload class, and test results.

---

Reference

Reading a GMN Bearing Part Number

GMN bearing part numbers encode every relevant specification in a 15-position designation system. Understanding this system lets you confirm exactly what is in your spindle — and verify what should be going back in after rebuild.

Position	Code	Meaning
1 — Material	HY	Silicon Nitride ceramic balls, steel rings. No prefix = standard bearing steel throughout.
2 — Series	KH	S = standard, SM = high-speed large ball, KH = small ball high speed, BNT/BHT = separable.
3 — Direct Lube	A / AB / L / AG	Oil lube hole position (open/closed side) and O-ring seal arrangement. AG = grease lube hole.
4 — Size	6002	Standard dimension series and bore diameter designation.
5 — Seals	2RZ	KH series: 2RZ = sealed both sides. Important for contaminated environments.
6 — Contact Angle	C / E	C = 15° (higher speed), E = 25° (higher rigidity/load). Custom angles available on request.
7 — Cage	TA / TXM	TA = laminated phenolic resin, outer ring guided (standard). TXM = molded plastic, ball retaining.
8 — Precision	P4+ / HG / UP / P2	P4+ ≈ ABEC 7 tighter; HG and UP are GMN proprietary grades above P4+; P2 = ABEC 9.
9 — High Point	R / Ri / Ra	R = both rings marked; Ri = inner only; Ra = outer only. Used for precision assembly orientation.
10 — Grading	X	Bore and outer diameter graded to tighter than standard tolerance bands.
11 — Set Size	D / T / Q	D = 2 bearings, T = 3, Q = 4. Single bearing = no code.
12 — Matching	U / F / B / T	U = universal, F = face-to-face, B = back-to-back, T = tandem arrangement.
13 — Preload	L / M / H	L = Light, M = Medium, H = Heavy. Actual N values vary by bearing size — see data sheet.
14 — Heat Treatment	S1 / S2 / S3	S1 = 200°C, S2 = 250°C, S3 = 300°C maximum operating temperature.
15 — Lubrication	T274	T-code grease identifier. No code = no lubrication. Must be matched during rebuild.

---

Common Questions

GMN Spindle Repair FAQ

Do I need to send the spindle to GMN for repair, or can an independent shop do it correctly?

GMN spindles can be correctly rebuilt by an independent repair shop that has access to the bearing specifications and the discipline to follow them. The critical requirements are: sourcing the correct GMN bearing precision grade, matching the original grease T-code and fill percentage, and setting preload to the correct N value for the specific bearing part number. None of these require OEM involvement — they require technical knowledge and the right parts.

What is the typical turnaround time for GMN spindle repair?

Call us at (678) 225-7855 to discuss your specific spindle and timeline. Turnaround depends on the spindle series, parts availability for the correct bearing grade, and the extent of any secondary damage found at disassembly. We discuss realistic timelines before work begins, not after.

My GMN spindle still runs — does it need repair now or can I wait?

GMN spindles typically show process symptoms — accuracy drift, finish degradation, speed-specific vibration — well before mechanical failure. If you’re seeing those symptoms and compensating for them in programming or setup, the bearing condition is already degraded. Waiting until the spindle fails completely typically means secondary damage to the shaft, housing bore, or taper that significantly increases repair cost.

What is the difference between P4+ and standard ABEC 7?

P4+ corresponds to P4S per DIN 628-6 — it is tighter than standard P4 (ABEC 7) but in the same general tolerance class. GMN uses P4+ as the baseline precision grade for angular contact spindle bearings, meaning even their entry-level spindle bearings are held to a tighter standard than commodity ABEC 7. Installing standard P4/ABEC 7 replacement bearings in a GMN spindle that originally ran P4+ will introduce additional runout.

Should I upgrade to hybrid ceramic bearings during repair?

Hybrid Si₃N₄ bearings are worth considering if: the spindle operates at the upper end of the speed range, the previous failure involved heat-related grease degradation, or extended bearing life is a priority. The lower mass of ceramic balls reduces centrifugal loading and heat generation at speed. The trade-off is slightly lower static load capacity — which is rarely a constraint in the grinding and finishing applications where GMN high-speed spindles typically operate.

How do I know which grease code was used in my GMN spindle?

The T-code is printed on the original bearing box label. If the boxes are unavailable, the spindle model documentation or the GMN bearing part number (position 15 in the designation) will specify the grease. We can also identify the correct specification from the bearing part numbers found at disassembly — call us at (678) 225-7855.
