HSD Spindle Repair

HSD spindles power CNC routers and machining centers across woodworking, aerospace, plastics, and aluminum fabrication. They run at high speeds, tight tolerances, and continuous duty cycles — and when one fails, production stops. Atlanta Precision Spindles specializes in HSD spindle repair across the full product range. Every rebuild starts with a complete teardown and inspection. Work never begins until you’ve approved a written quote.

HSD Spindle Series We Repair

HSD produces several distinct spindle families, each with different architecture, bearing configurations, and failure patterns. The repair approach varies by series — what works on an ES Series electrospindle is not the same procedure as an AT Series ATC unit or a high-torque MTR assembly.

HSD ES Series — Electrospindles for CNC Routing & Precision Machining

The ES Series is HSD’s core electrospindle line — direct-drive, high-speed units used across CNC routers, nesting machines, and machining centers in woodworking, composites, plastics, and aluminum. These spindles run at speeds from 18,000 to 24,000 RPM depending on the model, with ISO 30, HSK-E50, and HSK-F63 tool interfaces across the range. Because there are no belts or gears in the power path, bearing condition determines everything — runout, finish quality, noise, and thermal stability all trace directly to the bearing assembly.

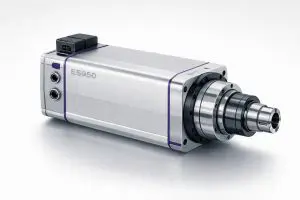

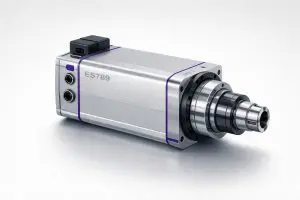

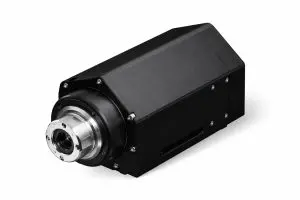

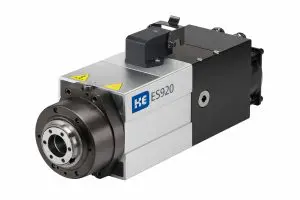

The ES Series generates the highest volume of repair work we see. Common models include the ES779, ES789, ES919, ES920, ES929, ES951, ES988, and ES915. Each has distinct bearing specifications, preload requirements, and drawbar configurations. We rebuild all of them.

HSD AT Series — Automatic Tool Change Spindles

The AT Series covers HSD’s automatic tool change spindle designs — units built for production environments where tool changes happen frequently and drawbar integrity is critical to every cycle. AT Series spindles use HSK-F63 and ISO 30 interfaces and run in nesting machines, aggregate machining centers, and multi-spindle CNC configurations. The drawbar mechanism on an AT Series spindle takes far more actuation cycles than a manual-change unit, and drawbar clamping force degradation is the leading failure mode we see on this platform.

HSD MT & MTR Series — High-Torque Industrial Spindles

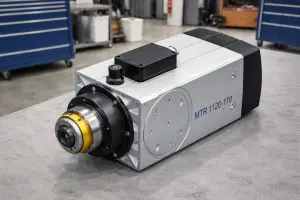

The MT and MTR Series are HSD’s heavy-torque platforms, designed for sustained cutting loads in structural wood, heavy composites, and industrial panel processing. These spindles run at lower RPM than the ES Series but carry significantly higher torque ratings. The MTR 1120-170 and MTR 1320-200 represent the upper end of the range — high-load assemblies with robust bearing sets that still wear out under continuous industrial use. Failure on these platforms tends to show as vibration under load, heat at the housing, and declining surface quality on heavy cuts rather than the speed-dependent symptoms typical of ES Series wear.

Why HSD Spindles Require Specialized Repair

HSD electrospindles are direct-drive assemblies — the motor rotor is integrated directly onto the spindle shaft with no intermediate power transmission. This design gives them speed, smoothness, and balance that belt-driven units can’t match. It also means there is nothing between the motor and the cutting tool to absorb or mask internal wear. When bearings degrade, the effects show immediately in the machining results.

Symptoms That Indicate an HSD Spindle Problem

HSD spindle wear is gradual enough that early symptoms are often misattributed to tooling, feeds and speeds, or material variation. These are the patterns that point specifically to the spindle:

• Surface finish degrades at operating speed but is acceptable at lower RPM
• Vibration or noise appears above a certain speed threshold and worsens as the spindle warms up
• Tool life drops across multiple tool types without changes to cutting parameters
• Runout measured at the taper varies between tool changes on the same holder
• Heat concentrates at the spindle nose or housing during production runs
• Tolerance drift that worsens over the course of a long cycle
• On ATC spindles: tool pull-out, torque-off alarms, or inconsistent seating

Two or more of these symptoms on a high-hour machine is a strong signal that spindle work is needed. The longer an HSD electrospindle runs with degraded bearings, the more likely the rotor balance, taper bore, or housing bore accumulates secondary damage that increases repair cost.

The Repair Process

Every HSD spindle repair at Atlanta Precision Spindles follows the same sequence regardless of series or model.

Repair vs. Replacement

A new HSD electrospindle is a significant capital expense. In most cases, a well-executed rebuild restores the spindle to equivalent performance at a fraction of replacement cost — and does it faster than sourcing a new unit through distribution channels. Replacement makes sense when the housing is cracked, the shaft is bent beyond restoration, or the model is obsolete enough that parts are unavailable. We’ll tell you honestly which situation you’re in after inspection, and we won’t recommend a rebuild on a spindle that isn’t going to hold up.

Request a Quote

Fill out the form below to request a repair quote. Include the spindle model and serial number if you have them — it helps us give you an accurate estimate before the spindle arrives.

Frequently Asked Questions

Which HSD spindle models do you repair?

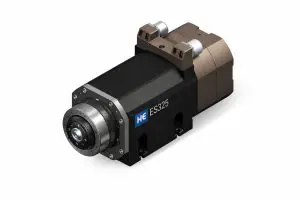

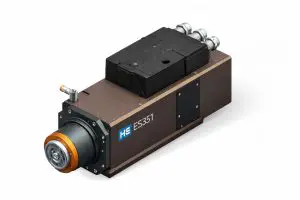

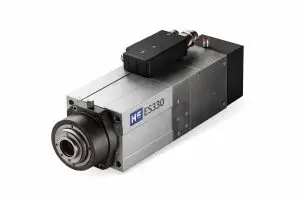

We repair HSD spindles across the ES, AT, MT, and MTR series. Commonly serviced models include the ES779, ES789, ES919, ES920, ES929, ES951, ES988, ES915, ES325, ES330, ES351, MTR 1120-170, and MTR 1320-200. If your model isn’t listed, call us — we repair most HSD electrospindles and can confirm capability before you ship.

How long does HSD spindle repair take?

Most HSD spindle rebuilds complete in 5–10 business days from receipt. Straightforward bearing replacements with no secondary damage run toward the shorter end. If rotor work, taper restoration, drawbar replacement, or housing repair is required, the timeline extends — we communicate that clearly after inspection and before proceeding.

My HSD spindle was rebuilt elsewhere and failed again quickly. What causes that?

Early failure after a rebuild almost always traces to one of three things: incorrect bearing preload for the spindle’s rated speed, contamination introduced during reassembly, or bearing grade that doesn’t match the operating conditions. ES Series spindles running at 18,000–24,000 RPM are particularly unforgiving of preload errors — too loose and the bearings skid, too tight and they overheat. We set preload to the model-specific specification, clean ultrasonically before assembly, and do final assembly in a Class 10K clean room. If a previous rebuild failed early, tell us — we’ll look specifically at those factors during teardown.

Do you repair HSD spindles with HSK-F63 and ISO 30 interfaces?

Yes. We service HSD spindles across all common interface types including ISO 30, HSK-E50, and HSK-F63. The taper bore is inspected as part of every teardown, and taper damage from crash events or wear is addressed before reassembly.

Can you repair an HSD spindle that took a crash?

Often yes, depending on the severity. Light to moderate crash damage — taper wear, bearing damage, minor rotor imbalance — is typically addressable during a rebuild. Severe crashes that bend the shaft, crack the housing, or deform the taper beyond restoration are a different situation. We inspect the spindle completely after teardown and give you an honest assessment of what’s recoverable before any repair work begins.

Do you supply HSD spindle bearings, or should I source them?

We supply the bearing sets. We use precision-grade bearings matched to the spindle model’s rated speed and preload specification — not general-purpose substitutes. If you have a specific bearing preference or an OEM-specified set, we can work with that as well.
