HSD ES920 Spindle Repair & ISO20 Rebuild Services
Overview

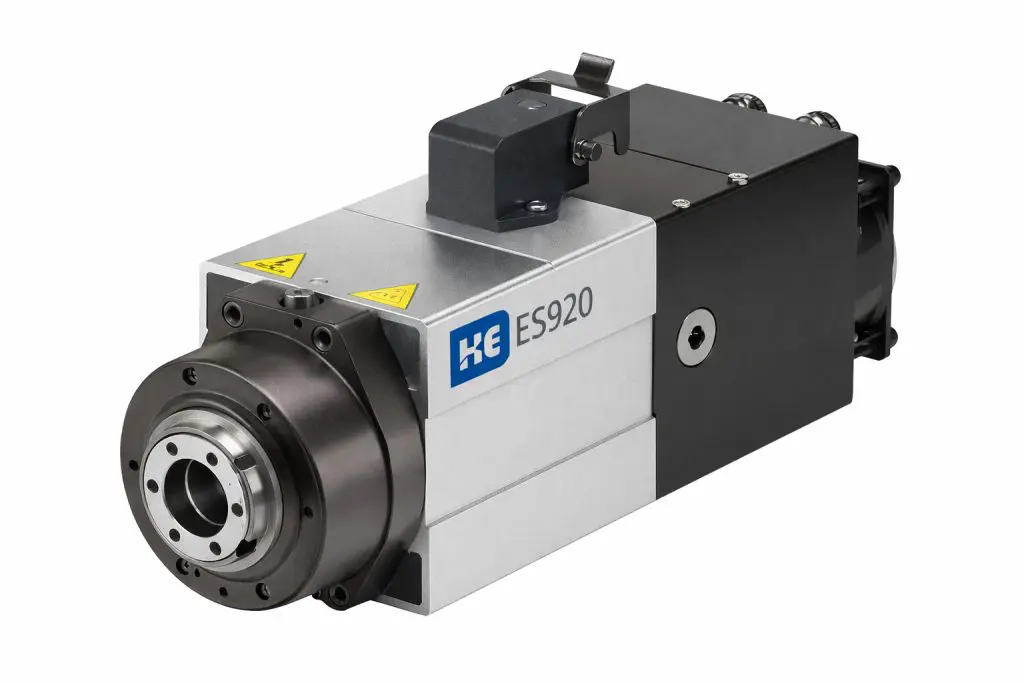

The HSD ES920 is a compact electrospindle designed for automatic tool change applications using an ISO20 interface. It is built in a smaller rectangular body format (82 x 92.5 mm) and is typically used in lighter-duty machining environments such as:
- Plastic finishing
- Wood routing
- Desktop CNC routers
- Robotic applications
Despite its compact size, the ES920 includes automatic tool change functionality, making it a unique hybrid between small-frame motors and production-grade electrospindles HSD_Cat_Composite_mar24_Web_ENG….
Technical Specifications (Official Model Data)
From the HSD catalog (pages 14–15) HSD_Cat_Composite_mar24_Web_ENG…:
- Body Diameter: 82 x 92.5 mm
- Max Speed: 24,000 rpm
- Motor Technology: Asynchronous
- Torque S1/S6 (40%): 0.58 / 0.73 Nm
- Power S1/S6 (40%): 1.1 / 1.38 kW
- Taper: ISO 20
- Cooling: Electric fan
What Makes ES920 Different
Unlike the larger ES9xx models:
- Lower torque output
- Smaller bearing stack
- Fan-cooled only
- ISO20 taper (lighter clamp force compared to HSK systems)
Because of its size, ES920 failures often progress more quickly once vibration begins.
🔍 Common Failure Modes – HSD ES920
1️⃣ Front Bearing Wear from Contamination
Smaller-frame spindles are extremely sensitive to:
- dust ingress
- fine composite particles
- lack of seal integrity
Symptoms
- high-pitched noise at speed
- increased runout
- premature surface finish degradation
2️⃣ Fan Cooling Limitations
ES920 uses electric fan cooling HSD_Cat_Composite_mar24_Web_ENG….
Common problems:
- airflow restriction from dust buildup
- fan motor degradation
- overheating during continuous duty use
Because it lacks liquid cooling, thermal buildup can shorten bearing life if airflow is compromised.
3️⃣ ISO20 Tool Clamp Wear
ISO20 systems use lighter clamp force compared to HSK F63 systems.
Common issues:
- pull stud wear
- weak retention
- tool slipping under load
This is especially noticeable when operators push feed rates beyond recommended limits.
4️⃣ Overloading in Production Environments
ES920 is rated at 1.38 kW S6 max HSD_Cat_Composite_mar24_Web_ENG….
When used in:
- heavy hardwood
- aggressive aluminum cutting
- long-duration duty cycles
overloading accelerates bearing and clamp degradation.
🧰 ES920 Rebuild Process
- Full teardown and cleaning
- Bearing replacement (high-speed matched set)
- ISO20 taper inspection
- Drawbar/tool clamp inspection + rebuild if necessary
- Fan system inspection and airflow test
- Rotor balance verification
- Final run-in at rated speed
Because of the smaller bearing system, preload precision is critical.
💰 Repair vs Replace – ES920
Given its lower power rating, ES920 units are less expensive than larger ES models—but replacement still results in downtime.
If:
- shaft is not damaged
- taper is intact
- motor windings are healthy
a rebuild restores performance quickly and economically.
✅ Preventative Maintenance – ES920
- Keep taper and toolholders clean
- Inspect pull studs regularly
- Clean fan intake area frequently
- Avoid running at full load continuously
- Monitor early vibration changes
