Spindles for Robotic Machining & Trimming

How Side Load, Reach, and Duty Cycle Expose Spindle Wear

Robotic machining and trimming introduce challenges that traditional CNC machines rarely face. Long reach, changing leverage, and continuous side loading place non-traditional stresses on the spindle. As a result, spindle wear in robotic cells often appears as finish inconsistency, tool life loss, or heat—not loud vibration or alarms.

What Robotic Machining Demands From a Spindle

Robotic applications typically involve:

• Continuous side loading
• Long reach and changing leverage
• Lightweight spindle construction
• Extended duty cycles
• Rapid acceleration/deceleration

Because robot arms are inherently more compliant than CNC machine structures, spindles used here must prioritize:

• Bearing durability under side load
• Thermal stability over long runs
• Consistent balance at varying orientations
• Low mass without sacrificing stiffness

In this environment, small changes in spindle condition are amplified.

Spindle Designs Commonly Used in Robotic Cells

Most robotic machining and trimming systems rely on:

• Compact integral motor spindles
• Designs optimized for side-load tolerance
• Moderate-to-high RPM with continuous duty capability

These spindles are chosen for weight and flexibility—but that also means wear can progress quietly.

🔗 Robotic Machining Spindles — Common Manufacturers & Models

Below are manufacturers and widely used robotic spindle models, with clear internal-link targets you can wire in immediately.

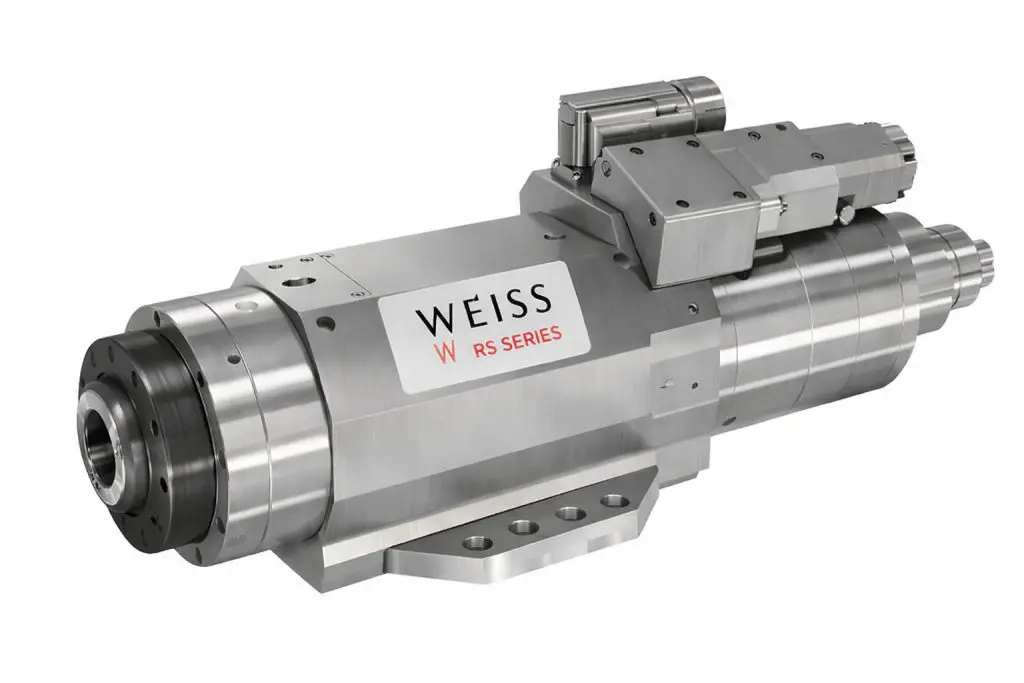

Weiss — RS Series Robotic Spindles

Weiss RS spindles are purpose-built for robotic trimming, milling, and composite machining.

Common robotic models

• Weiss RS 40
• Weiss RS 50

Typical robotic symptoms

• Bearing wear from constant side loading
• Finish inconsistency during contouring
• Heat buildup during long trimming cycles

HSD — Robotic Routing & Trimming Spindles

HSD spindles are frequently adapted for robotic routing and trimming in composites, plastics, and aluminum.

Common robotic models

• HSD ES330
• HSD ES779
• HSD ES789

Typical robotic symptoms

• Finish degradation without obvious vibration
• Tool life shortening across programs
• Heat appearing late in long cycles

Perske — Continuous-Duty Robotic Spindles

Perske spindles are commonly used where robots perform long, uninterrupted trimming or drilling operations.

Common robotic configurations

• High-speed continuous-duty motor spindles

Typical robotic symptoms

• Thermal buildup during extended operation
• Gradual bearing noise development

Giordano Colombo — Robotic Milling & Trimming Spindles

Used in robotic applications requiring higher material removal while maintaining a lightweight spindle package.

Common robotic lines

• Colombo high-speed ATC spindles
• Lightweight routing spindles

Typical robotic symptoms

• Vibration under side load
• Sensitivity to reach and orientation

IBAG — Precision Robotic Spindles

IBAG spindles are occasionally used in high-precision robotic milling and finishing applications.

Common robotic use

• Precision trimming
• Light robotic milling

Typical robotic symptoms

• Thermal drift affecting accuracy
• Finish changes at extended reach

Early Warning Signs in Robotic Spindles

Finish inconsistency along the same path

A classic robotic symptom:

• Acceptable finish near the base
• Degrading finish at extended reach

This often reflects side-load–induced bearing wear, not robot calibration alone.

Tool life declining without parameter changes

Watch for:

• Increased tool consumption
• Inconsistent wear patterns

Effective runout often increases before vibration becomes audible.

Heat buildup late in the cycle

Robotic spindles may:

• Run cool initially
• Accumulate heat over long trimming runs

Heat is commonly linked to bearing friction under side load.

Why Robotic Spindle Problems Are Often Misdiagnosed

Robotic issues are frequently blamed on:

• Robot stiffness
• TCP calibration
• Programming strategy

While those factors matter, spindle condition often amplifies perceived robot compliance, especially as bearings wear.

Repair vs Replacement for Robotic Spindles

Replacement

Replacement may be necessary after severe damage, but often involves:

• Long lead times
• High cost
• Robot requalification downtime

Professional Spindle Repair

When addressed early, repair can:

• Restore finish consistency
• Improve thermal behavior
• Extend spindle service life
• Reduce scrap

DIY Risks in Robotic Applications

Robotic spindles are particularly sensitive to:

• Bearing preload errors
• Balance issues amplified by reach
• Thermal instability after internal work

DIY internal work often worsens finish problems.

Is It the Spindle—or the Robot?

Robotic issues are often spindle-related when:

• Problems scale with reach or orientation
• Finish degrades without program changes
• Heat localizes at the spindle housing

Robot calibration issues usually appear consistently, regardless of spindle speed or load.

• Is It the Spindle or the Machine? Diagnostic Guide

Final Thought

Robotic machining magnifies spindle wear.

When finish quality, tool life, or heat changes with reach or orientation, the spindle is often the quiet contributor—even when the robot itself appears mechanically sound. Catching that early is the key to protecting quality and uptime.

Illustrations are representative and used for educational purposes; actual spindle configurations may vary.
